This article will show how to convert electrical resistance measurement units from megaohms (MΩ) to gigaohms (GΩ). We will cover essential definitions, provide examples, share relevant formulas, and present tables, along with answers to common questions.
Definitions of Ohm, Megaohm, and Gigaohm
Let’s get started by understanding the key definitions of Ohm (Ω), Mega-ohm (MΩ), and Giga-ohm (GΩ). Understanding these terms will enable you to perform conversions with confidence.
What is Ohm?
The ohm (Ω) is the SI derived unit of electrical resistance. It is defined as the resistance between two points of a conductor when a constant potential difference of one volt is applied across those points, producing a current of one ampere in the conductor, assuming no additional electromotive force is present.[1]
According to SI prefixes[2], which are based on powers of 10, an ohm (1 Ω) is equivalent to one millionth (1/1,000,000) of a megaohm (10-6 MΩ or 0.000001 MΩ).
What is Megaohm?
A megaohm (MΩ) is a unit of electrical resistance in the SI system equal to one million (1,000,000) ohms (106 Ω).
It is commonly used in high-voltage insulation testing, medical device safety validation, and industrial sensor design, where measuring extreme resistance up to millions of ohms determines critical safety margins and operational reliability.

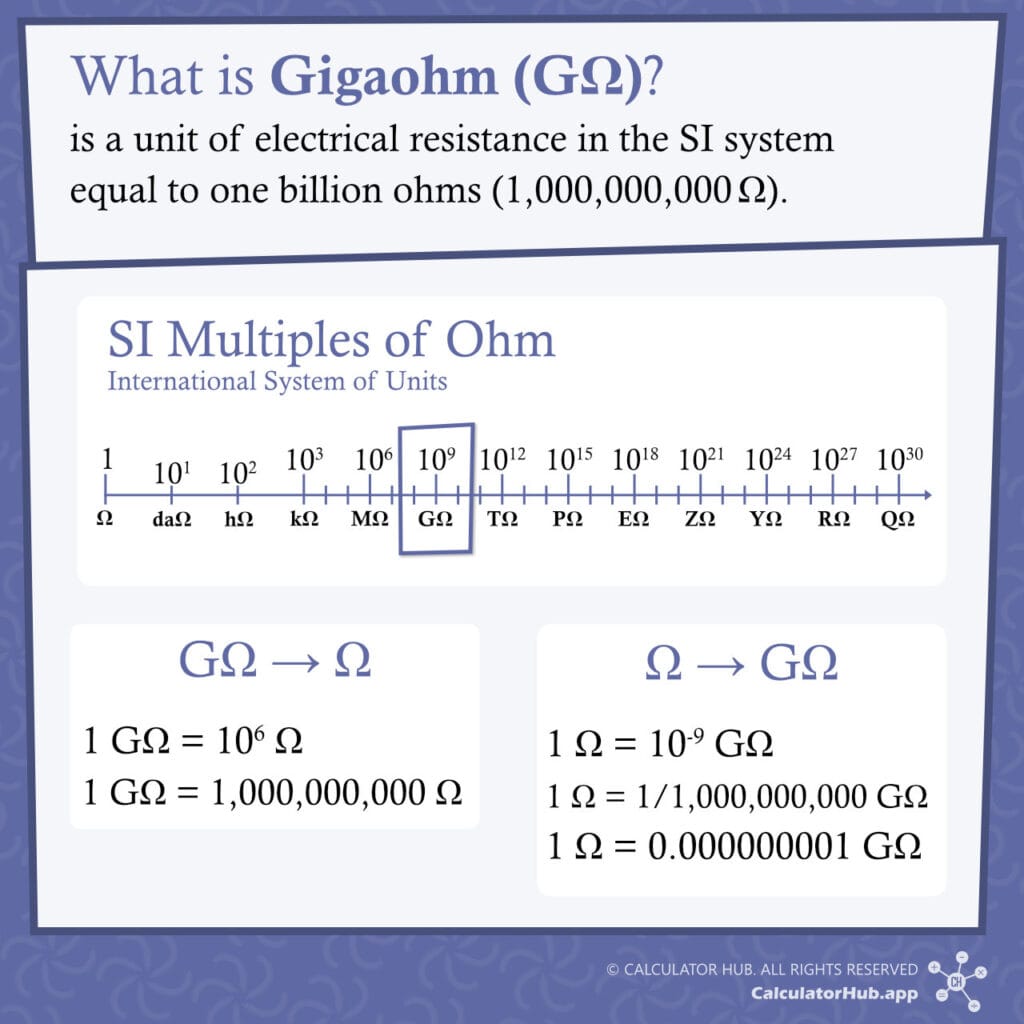

What is Gigaohm?
A gigaohm (GΩ) is a unit of electrical resistance in the SI system equal to one billion (1,000,000,000) ohms (109 Ω).
It is commonly used in fields such as high-voltage engineering, insulation testing for power equipment, and geophysical surveys, where measuring resistance in the billions of ohms is essential to ensure safety, performance, and reliability.
MΩ to GΩ formula
Let’s take a closer look at the conversion formula so you can carry out these conversions independently, whether using a calculator or doing it manually with pencil and paper.
The mega- prefix in the International System of Units (SI) corresponds to a multiplier of 106 (1,000,000) while the giga- prefix represents 109 (1,000,000,000).
To convert megaohms (MΩ) to gigaohms (GΩ), divide the resistance value in megaohms by 103 (1,000), since 1 gigaohm equals 1,000 megaohms.
R(GΩ) = R(MΩ) ÷ 103 = R(MΩ) ÷ 1,000
Or remember the MΩ-to-GΩ conversion factor: 1 GΩ = 10-3 = 0.001 GΩ
MΩ to GΩ conversion table
The conversion table below provides a handy reference for converting electrical resistance measurement units from megaohms (MΩ) to Gigaohms (GΩ). It covers a range from 0.1 MΩ to 1,000 MΩ, allowing for easy and quick conversions between these units of measurement.
| Megaohms (MΩ) | Gigaohms (GΩ) |
|---|---|
| 0.1 MΩ | 0.0001 GΩ |
| 0.5 MΩ | 0.0005 GΩ |
| 1 MΩ | 0.001 GΩ |
| 2 MΩ | 0.002 GΩ |
| 4 MΩ | 0.004 GΩ |
| 5 MΩ | 0.005 GΩ |
| 10 MΩ | 0.01 GΩ |
| 20 MΩ | 0.02 GΩ |
| 30 MΩ | 0.03 GΩ |
| 40 MΩ | 0.04 GΩ |
| 50 MΩ | 0.05 GΩ |
| 60 MΩ | 0.06 GΩ |
| 70 MΩ | 0.07 GΩ |
| 80 MΩ | 0.08 GΩ |
| 90 MΩ | 0.09 GΩ |
| 100 MΩ | 0.1 GΩ |
| 200 MΩ | 0.2 GΩ |
| 500 MΩ | 0.5 GΩ |
| 800 MΩ | 0.8 GΩ |
| 1,000 MΩ | 1 GΩ |
Examples
Now, let's look at an example that illustrates the calculations required to convert from megaohms to gigaohms (MΩ to GΩ).
Example: Automotive Electronics Testing
An automotive component undergoes an isolation test, and the measured resistance is 4000 MΩ. Engineers convert this value to gigaohms for consistency in reporting.
What is 4,000 MΩ in gigaohms?
Solution
Since 1 gigaohm (GΩ) = 1,000 megaohms (MΩ), we can convert 4,000 MΩ to gigaohms by using the following formula:
Therefore, the 4,000 MΩ electrical resistance is equivalent to 4 GΩ.

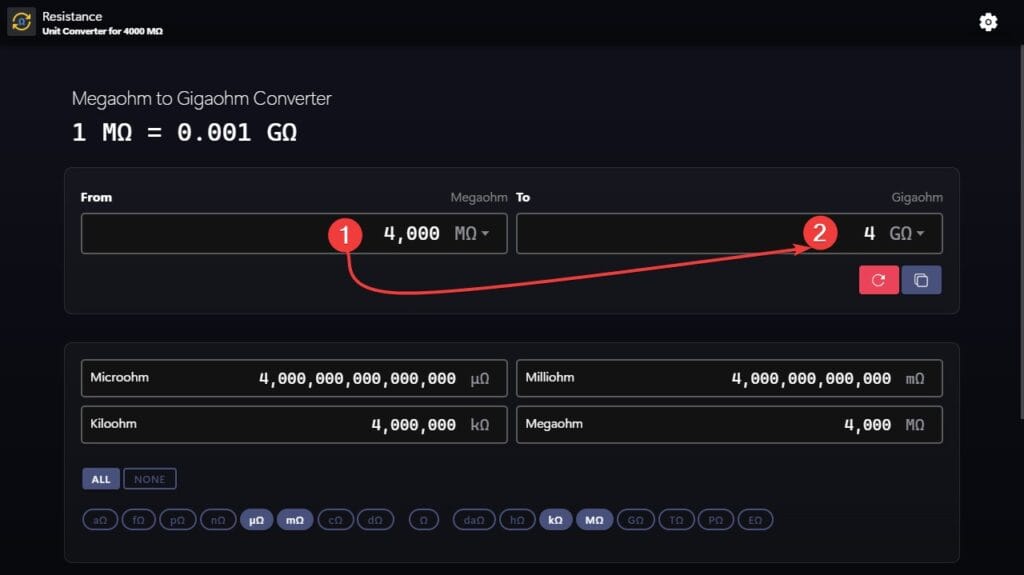

To solve the problem with our calculator, follow the steps below:
- Enter the value in megaohms: For this example, enter
4,000into the From box. - View the result: The converter instantly calculates and displays the equivalent value in gigaohms:
4 GΩ.
FAQs
Is 1 megaohm or 1 gigaohm larger?
A gigaohm (GΩ) is a thousand times bigger than a megaohm (MΩ). Here are the relationships between the units:
1 GΩ = 103 = 1,000 MΩ1 MΩ = 10-3 = 1 ÷ 1,000 = 0.001 GΩ
How to convert from megaohms to gigaohms?
To convert electrical resistance from megaohms (MΩ) to gigaohms (GΩ), follow these simple steps:
- Step 1: Write down the electrical resistance value in megaohms (MΩ).
- Step 2: Divdie it by a thousand (
1,000). - Step 3: The result is the value of the electrical resistance in gigaohms (GΩ).
Why do I need to convert megaohms to gigaohms?
Converting megaohms to gigaohms is useful when dealing with extremely high resistance values. One gigaohm equals 1,000 megaohms, so this conversion simplifies large numbers, making them easier to interpret and compare.
In applications such as insulation testing, semiconductor evaluations, and high-voltage equipment analysis, gigaohms provide a more manageable unit for expressing resistance without excessive digits.
You now know how to convert electrical resistance from megaohms (MΩ) to gigaohms (GΩ). You can quickly use our calculator to convert between electric resistance measurement units, saving time for future calculations.
